항발화성 플라스터 보드
Created with Pixso.

Class A1 Non-Combustible Fire Resistant Gypsum Board with 60-120 Minutes Fire Resistance and Reinforced Glass Fiber Core

Class A1 Non-Combustible Fire Resistant Gypsum Board with 60-120 Minutes Fire Resistance and Reinforced Glass Fiber Core

브랜드 이름: SUNHOUSE
MOQ: 500 PC
공급 능력: 3000000 미터 / 미터마다 달
상세 정보
원래 장소:
광둥
보증:
1년
판매 후 서비스:
온라인 기술 지원, 현지 점검, 무료 예비품
애플리케이션:
실내, 호텔, 빌라, 아파트, 사무실 건물
디자인 스타일:
현대의
특징:
항발화성 플라스터 보드
재료:
순수한 천연 석고
색상:
빨간색
용법:
내부 벽 파티션
가장자리:
정사각형 또는 테이퍼형
두께:
12.5mm
레귤러 사이즈:
1220mm*2440mm
포장 세부 사항:
우리의 용재는 팔레트에서 또는 대량으로 / 느슨한 포장 (팔레트가 패키지 보드와 PVC 테이프로 덮입니다) 쌌습니다
공급 능력:
3000000 미터 / 미터마다 달
제품 설명
Fire Resistant Gypsum Board 9mm 12mm 15mm | Fireproof Plasterboard Non-Combustible Core
Premium fire resistant gypsum board engineered with a reinforced non-combustible core containing glass fiber and advanced fire-retardant additives. Available in 9mm, 12mm, and 15mm thicknesses, this high-performance fireproof plasterboard delivers outstanding fire resistance, sound attenuation, and thermal insulation for demanding interior applications. Manufactured to strict international standards, it is the preferred choice for projects requiring enhanced passive fire protection.
Enhanced Fire Safety Performance
Our fire rated gypsum board achieves Class A1 non-combustible performance with flame spread and smoke development indices close to zero. In tested partition systems, 12mm and 15mm boards can provide up to 60–120 minutes of fire resistance, significantly improving building safety and compliance with global fire codes.
Key Technical Advantages
  • Reinforced non-combustible gypsum core with glass fiber for superior fire endurance
  • Excellent dimensional stability and low expansion rate under high temperature
  • Improved sound transmission loss (STC rating enhancement in partition systems)
  • Effective thermal resistance helping reduce energy consumption for heating and cooling
  • High strength-to-weight ratio – easy to handle, cut, and install on site
  • Tapered edges for seamless jointing and professional smooth finish
  • Low formaldehyde emission – complies with strict green building requirements
  • Compatible with standard metal or timber framing systems
Technical Specifications
Parameter Specification
Product Name Fire Resistant Gypsum Board (Type X / Fire Rated)
Standard Dimensions 1200 mm × 2400 mm (Custom lengths available up to 3000 mm)
Thickness Options 9 mm / 12 mm / 15 mm
Edge Type Tapered Edge (standard) • Square Edge available
Core Composition High-purity gypsum + glass fiber + fire-retardant additives
Face Paper Color Pink / Red (industry standard for fire-rated identification)
Fire Resistance Rating Up to 60–120 minutes (system dependent) • Class A1 non-combustible
Surface Burning (ASTM E84) Flame Spread Index: 0 • Smoke Developed Index: 0
Weight (approximate) 9mm: 8.0 kg/m² • 12mm: 10.5 kg/m² • 15mm: 13.2 kg/m²
Sound Reduction (STC) Improved by 3–6 dB in typical partition assemblies
Thermal Conductivity ≈ 0.18 – 0.22 W/(m·K)
Standards Compliance ASTM C1396, EN 520 Type F, GB/T 9775, ISO 9001, CE
Application Temperature Range -20°C to +50°C
Main Applications
  • Residential & multi-family housing – walls and ceilings requiring fire-rated separation
  • Commercial buildings – offices, hotels, shopping malls, and retail interiors
  • Public facilities – schools, hospitals, cinemas, libraries, and airports
  • Industrial & warehouse projects – fire compartmentation and safety partitions
  • High-risk zones – stairwells, corridors, elevator shafts, and escape routes
  • Renovation projects needing upgraded fire resistance ratings

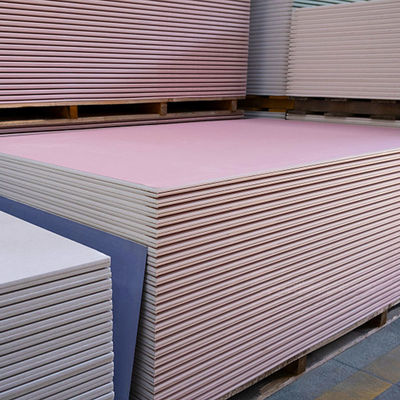

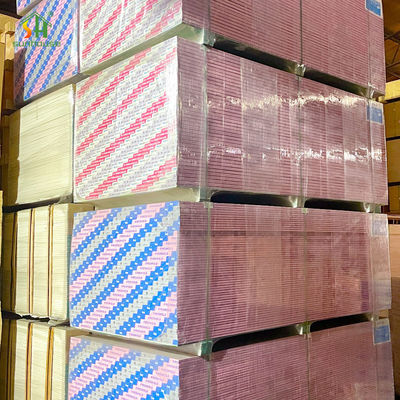

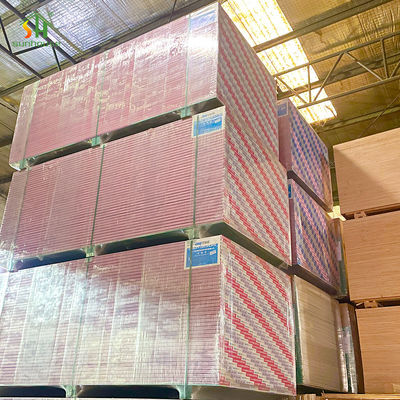

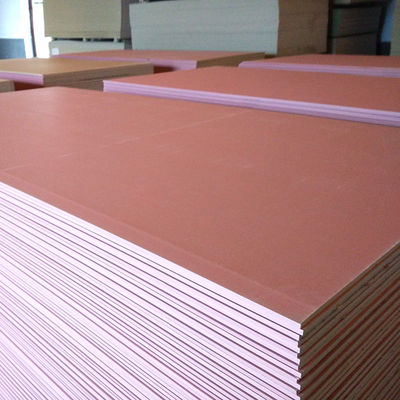

Packaging & Shipping

Boards are precisely cut, edge-protected, and stacked on robust wooden pallets. Each pallet is tightly strapped, wrapped with moisture-proof film, and clearly labeled with product specifications, thickness, batch number, quantity, and manufacturer details for full traceability.

Shipment is arranged via container or truck with proper bracing to prevent shifting. We strongly recommend storing the product in a dry, well-ventilated warehouse, elevated from the ground, and away from direct moisture exposure.

Frequently Asked Questions
Q: What is the difference between standard and fire resistant gypsum board?
A: Fire resistant boards contain a reinforced core with glass fibers and special additives that dramatically slow flame spread and maintain integrity longer during fire exposure, while standard boards do not offer the same level of fire protection.
Q: Which thickness should I choose for higher fire rating?
A: 12mm and 15mm thicknesses are commonly used when higher fire resistance (60–120 minutes) is required. The final rating also depends on the complete wall or ceiling assembly design.
Q: Is this board suitable for wet areas?
A: It performs well in normal dry-to-moderately humid interior environments. For bathrooms, kitchens, or high-humidity zones, we recommend using moisture-resistant (green) boards in combination or applying proper waterproofing measures.
Q: How do I get a quotation?
A: Please provide the required thickness, quantity, sheet size, destination port/country, and any special requirements (custom length, edge type, or certification needs). We usually reply with a competitive FOB/CIF quotation within 24 hours.
